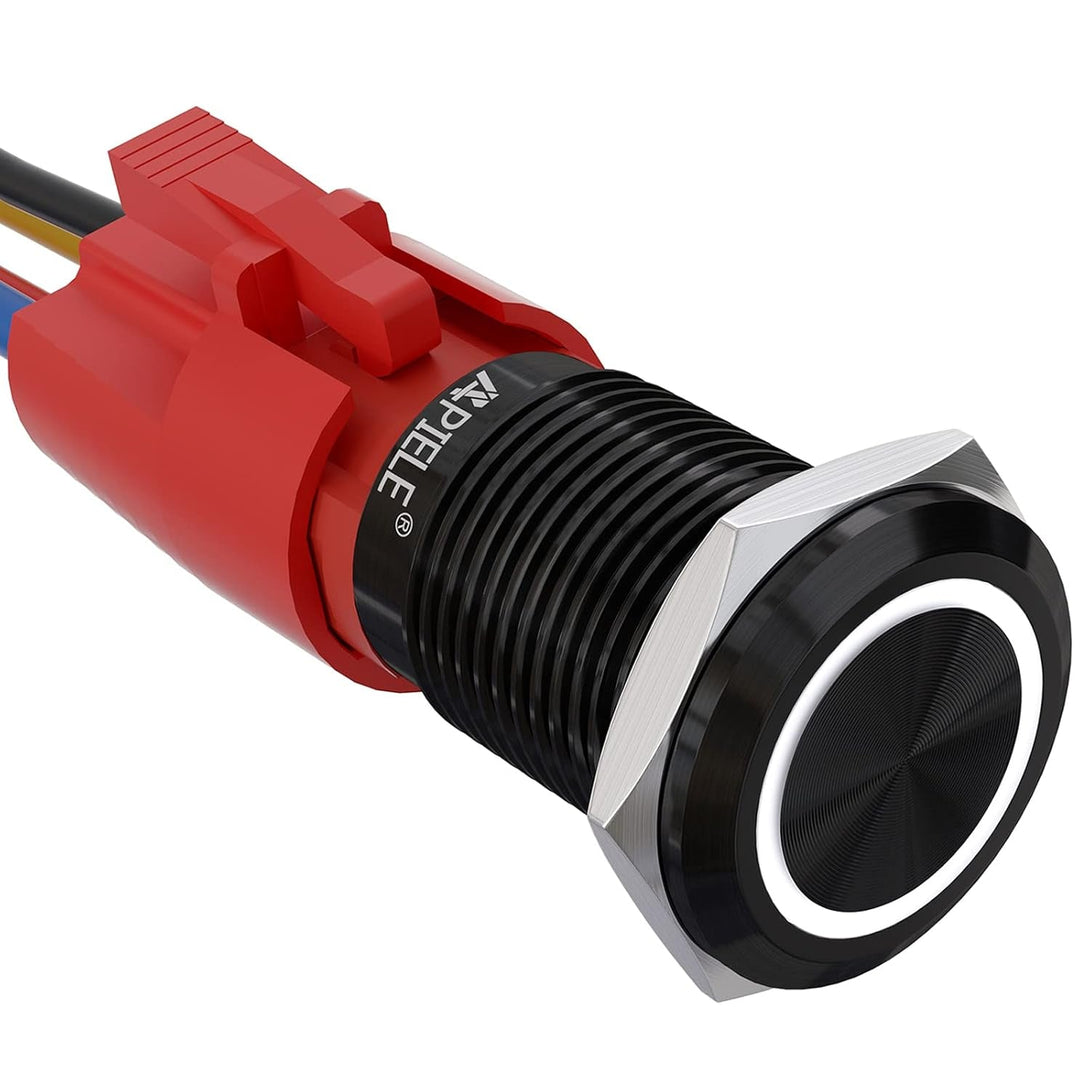

APIELE 10 Amp 16Mm Latching Push Button Switch 12V Angel Eye LED Waterproof round Self-Locking 1NO (Black Aluminum, White)
Description
| Item model number | GQ16AF-10EZ |
| Item dimensions L x W x H | 1.57 x 0.39 x 1.18 inches |
| Current Rating | 10 Amps |
| Operating Voltage | 12 Volts |
| Color | White |
| Country of Origin | China |
| Product Dimensions | 1.57 x 0.39 x 1.18 inches; 0.32 ounces |
| Material Type | Black Aluminum |
| Connector Type | Plug In |
| Terminal | Screw |
| Contact Type | Normally Open |
| Operation Mode | ON-OFF |
| Actuator Type | push button switch |
| Circuit Type | 1-way |
| Mounting Type Panel Mount | Specification Met RoHS |
| Brand | APIELE |
| Switch Type Push Button | Material Black Aluminum |
| Manufacturer | APIELE |
- Brand All New Design 10A Ring LED Pushbutton Switch; LED voltage: 12V only, Hole size required: 5/8''/16mm
- 16mm Latching Push Button Switch: Push it, ON; Push it again, OFF. Contact Configuration: 1NO
- Electrical life: 200 thousand times. Mechanical life: 1,000,000 cycles
- High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Suitable for automobile, motorcycle modification, switch modification of control equipment
Product Description
APIELE Aluminum Alloy Push Button Switch
This All Metal Switch Functions Manually As A Replacement Of Auto Refit, Boat Refit, Instruments Apparatus, Enter Guard, Household Appliance. It Provides Solid And Crisp Push Feedback And Comfortable Led Light. Ip65 Waterproof Make It Can Be Used In Humid Environment. Metal shell tolerates vibration and other harsh environmental conditions. The Improved Wire Diagram Come With The Switch And A Non-Electrical Person Can Install It Easy.

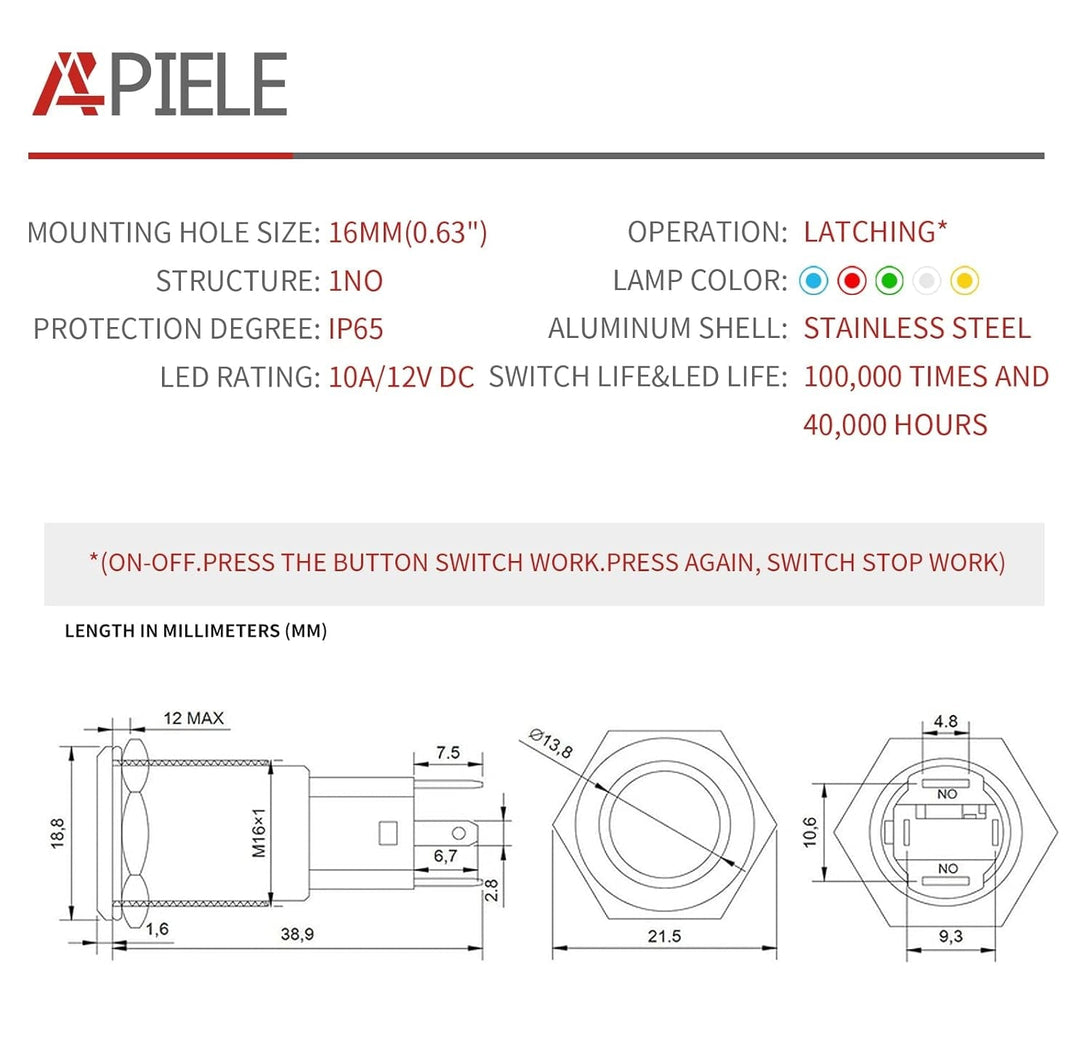

| Voltage | 12V AC/DC |
| Current | 10A |
| Mounting Hole | 16mm ( 0.63”) |
| Operation | Latching |
| Protection Degree | IP65 |
| Material | Aluminum Shell |
| LED Color | Blue, Red, White, Green, Yellow |
| Structure | 1NO |
| Contact Material | Aluminum alloy |
| Package Include | 1 x Push Button Switch, 1 x Pigtail Connector, 1 x Installation Wire Diagram |
IP65 Waterproof
The switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc.
Installation
16mm installation diameter, waterproof ring, easy to install, with wiring tail for easy wiring.

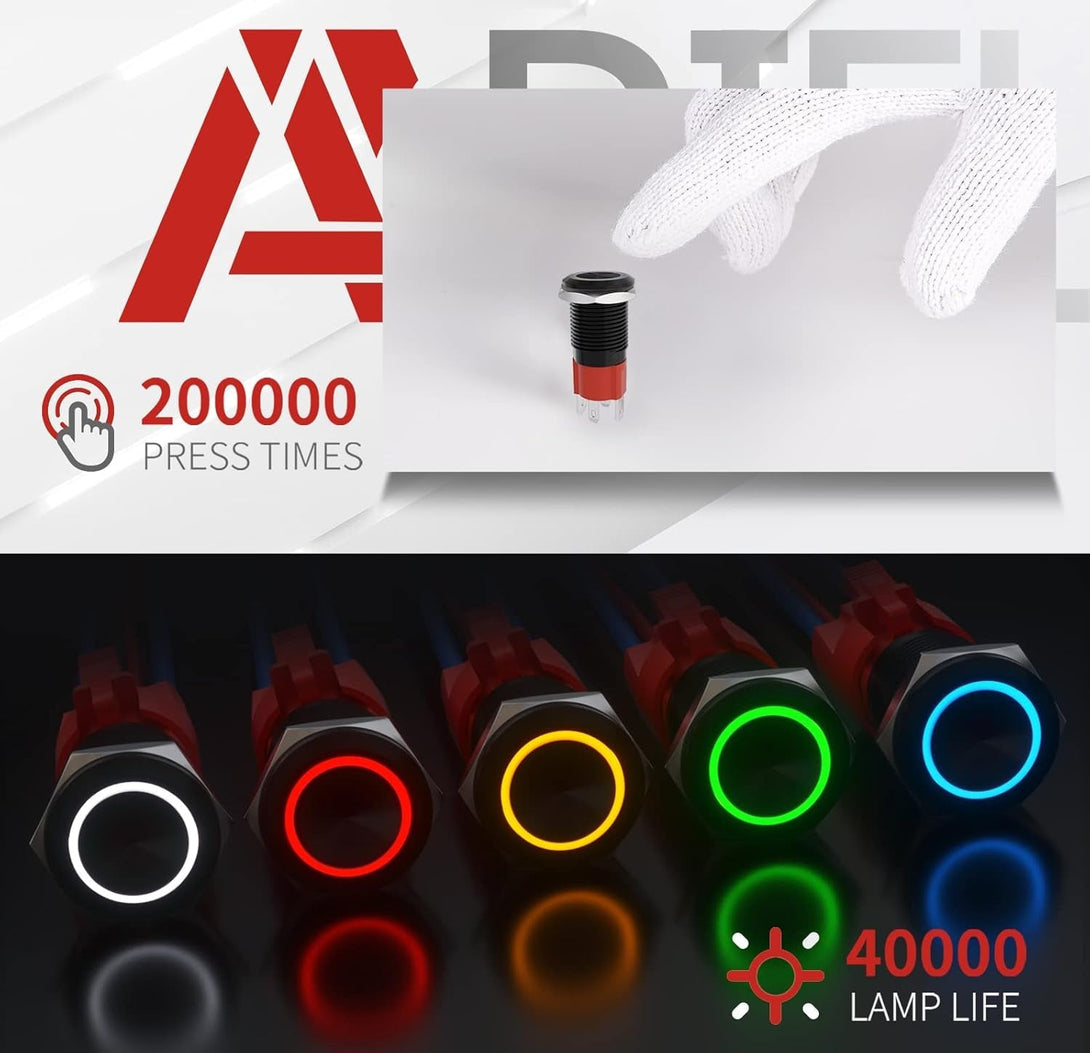

Long Work Life
The Mechanical work Life is 1,000,000 times. The New Design 10 Amp Switch Electrical Work Life is more than 200,000 times.
Pure Led Lights
APIELE Switch use pole-less lamp beads, bright and dazzling brightness, long service life. The work life of the led light is more than 40,000 hours.
APIELE More Items
12VDC/10A | Rating | 12VDC/5A |
22mm | Size | 16mm |
Stainless Steel | Material | Aluminum |
Latching | Operation | Latching |
DPST | Structure | SPDT |
Power Symbol |
12VDC/10A | Rating | 12VDC/5A |
22mm | Size | 19mm |
Stainless Steel | Material | Stainless Steel |
Latching | Operation | Latching |
DPST | Structure | SPDT |
Power Symbol |
12VDC/10A | Rating | 12VDC/10A |
22mm | Size | 22mm |
Stainless Steel | Material | Stainless Steel |
Latching | Operation | Latching |
DPST | Structure | DPST |
Power Symbol |
12VDC/10A | Rating | 12VDC/10A |
22mm | Size | 25mm |
Stainless Steel | Material | Stainless Steel |
Latching | Operation | Latching |
DPST | Structure | DPST |
Power Symbol |
- 16mm Push Button Switch
- 19mm Push Button Switch
- 22mm Push Button Switch
- 25mm Push Button Switch
