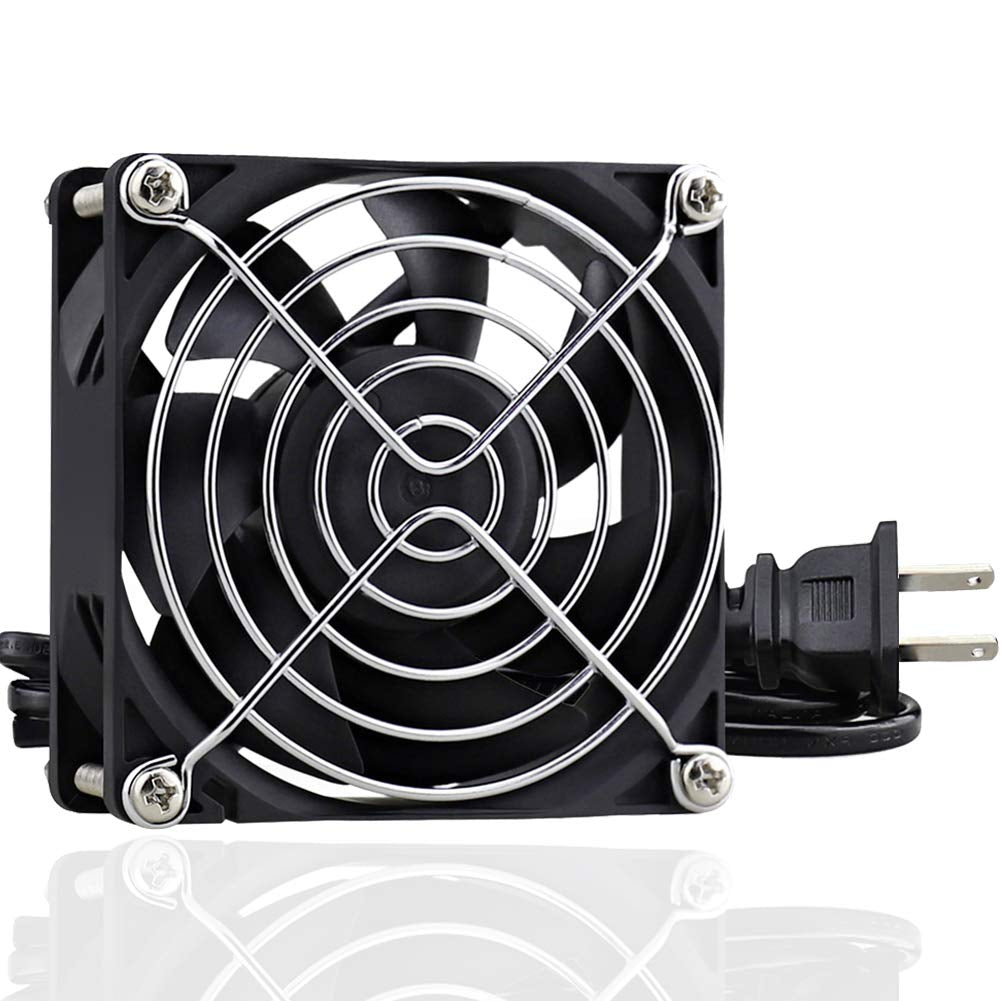

GDSTIME EC AXIAL 8025, Muffin Fan 110V 115V 120V 220V 240V AC 80Mm X 25Mm Small Brushless Cooling Fan with Switch Power Cord for DIY Ventilation Exhaust Projects
Description

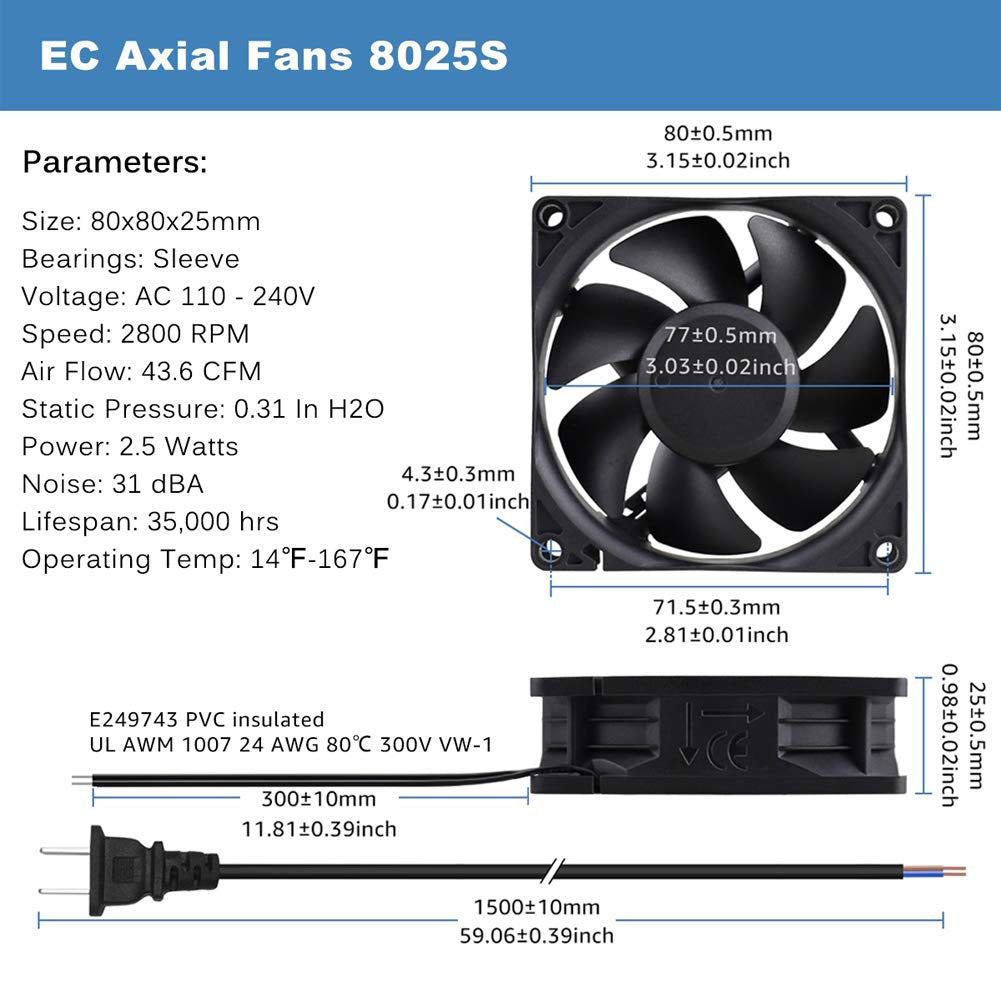

| Item model number | EC8025S 110V-240V |
| Power Connector Type | 2-Pin |
| Cooling Method | Air |
| Noise Level | 31 dB |
| Wattage | 2 watts |
| Material | Plastic |
| Country of Origin | China |
| Compatible Devices | Server |
| Style | Sleeve Bearing |
| Brand | GDSTIME |
| Voltage | 120 Volts (AC) |
| Maximum Rotational Speed | 2800 RPM |
| Product Dimensions | 3.15"L x 3.15"W x 1"H |
| Manufacturer | GDSTIME |

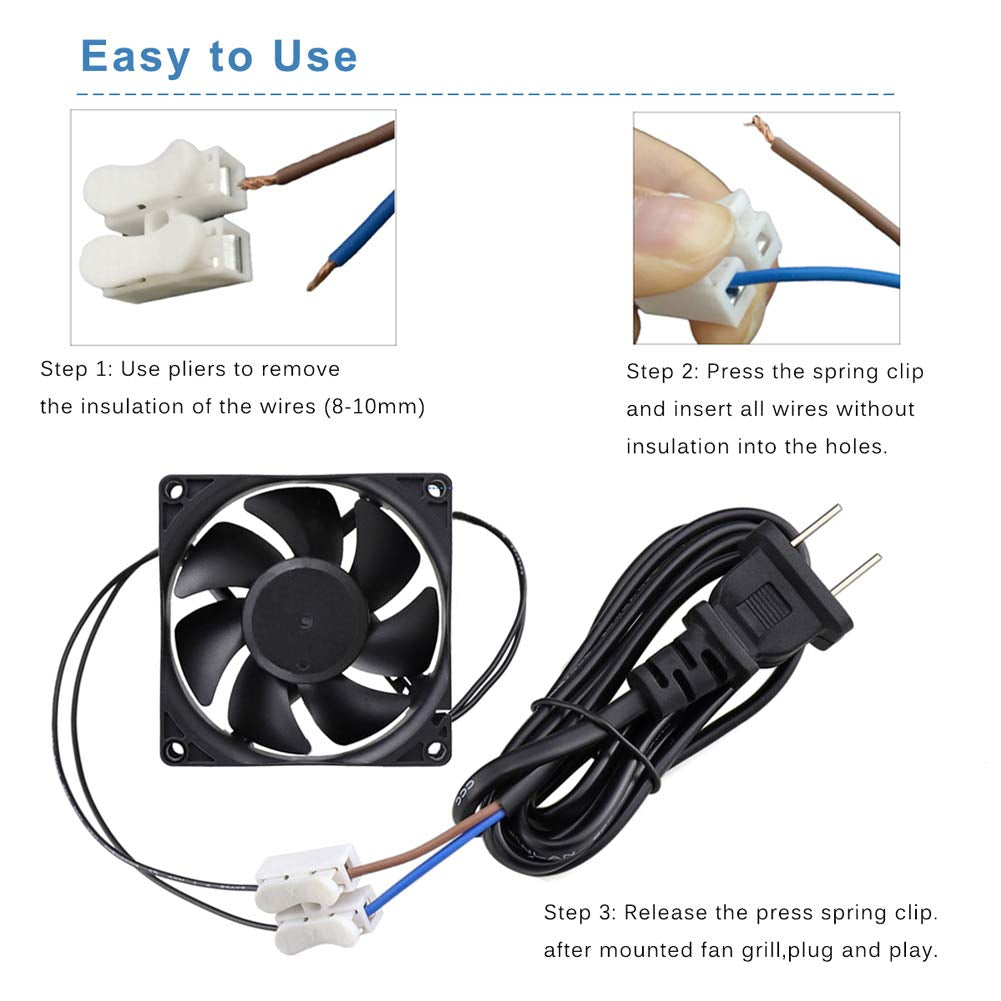

- Package include: 1 Piece fan include fan grill and mounting screws & nuts; 1x Wire Clip; 1x US Plug Power Cord
- This fan can easily run from 90 to 270VAC current without any trouble.
- 80x80x25mm AC 110V 115V 120V 220V 240V; Speed:2800rpm; 2.0W
- The motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application
- Sleeve bearing have a lifespan of 40,000 hours and allows the fans to be laid flat or stand upright.
Product Description
EC Axial Fans
EC fans/motors is highly regarded as the preferred choice for energy efficient motor and fan solutions.Available in 60mm,80mm,90mm,120mm size Run at 110V,115V,120V,220V,240V AC
80mm 110V 120V Fan
Why Choose an EC Fan?
GDSTIME’s EC fans are highly efficient, provide a more compact design, lower energy consumption and longer component life to reduce the costs of operation and maintenance.
- Certified by CE, RoHS.
What is EC Axial Fan?
Do you know?
- EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds.
- The motor runs on a DC voltage, but with a normal AC supply. The motor incorporates voltage transformation within the motor.
- The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.
- Brushless DC motor / fan driven by AC source input.
- Energy efficient
- Simple connection
- Less power consumption
- Smaller-sized motor for the same level of performance
Key Features
High Air Volume
Outstanding airflow performance with low static pressure. The air volume is 1.5-3 times higher than the same conventional fans.

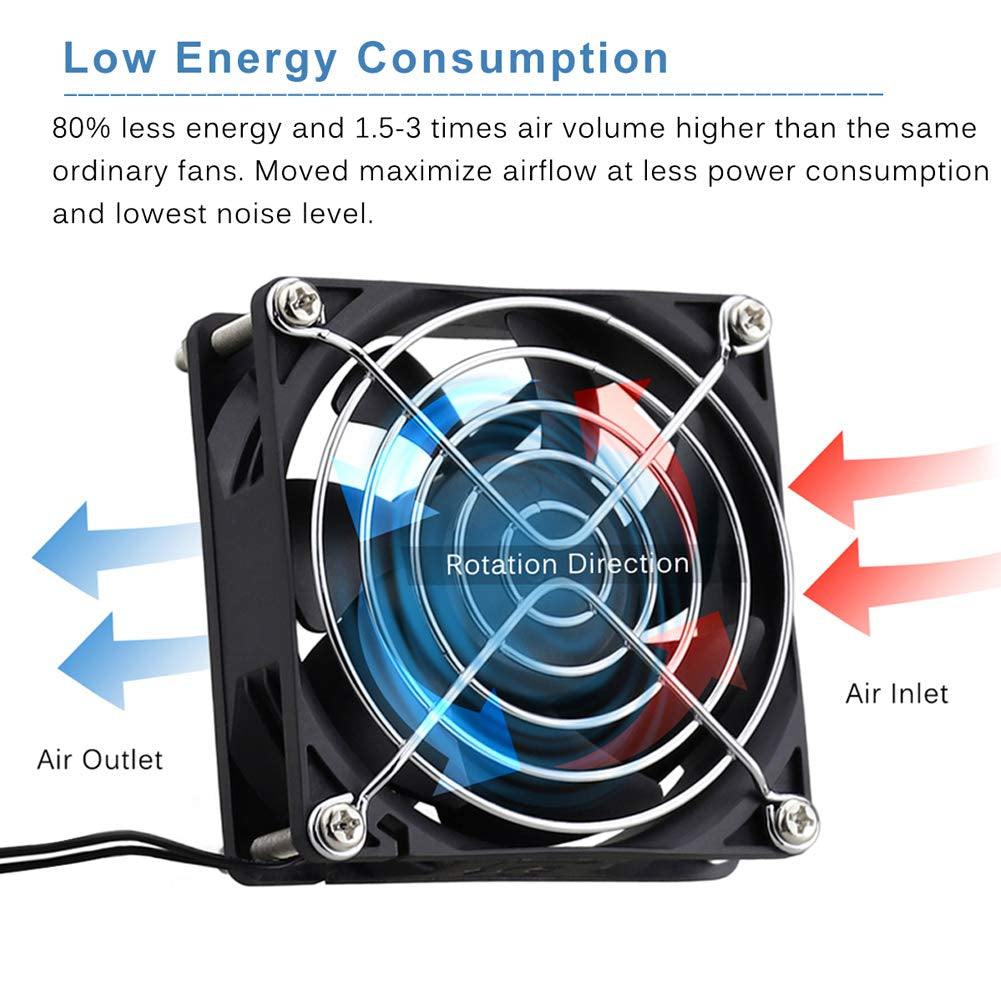

Low Energy Consumption
Efficiency EC motor, allowing EC fans to consume up to 80% less energy. Moved more air at less power consumption.

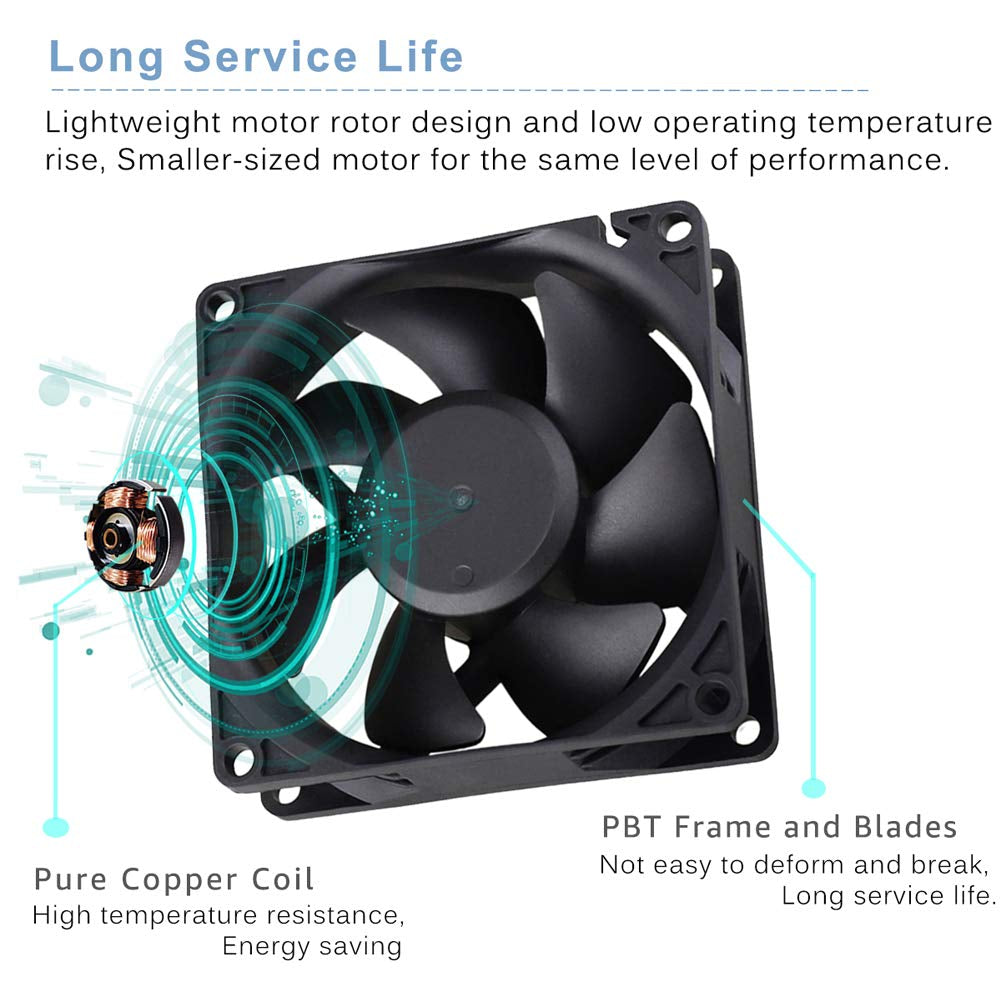

Long Service Life
Lightweight motor rotor design and low operating temperature rise, extend 50% lifespan compared others.

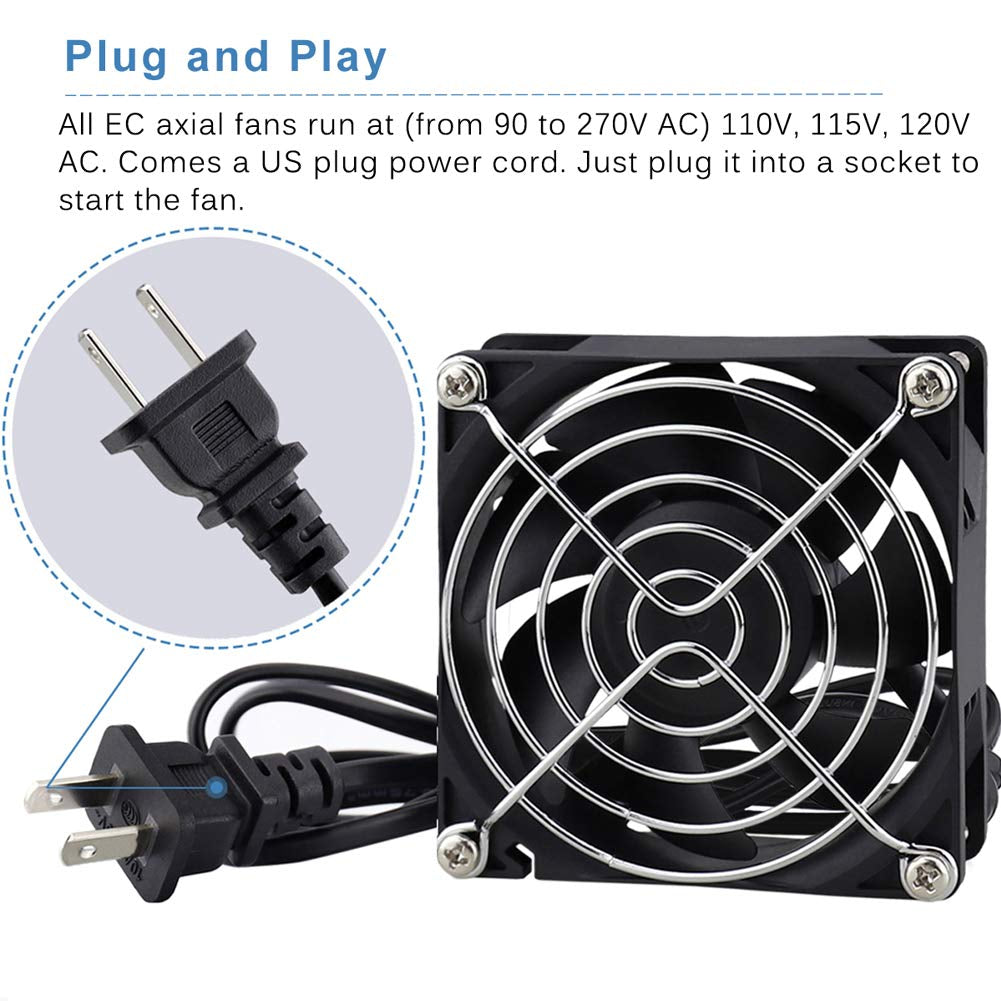

Global Universal Voltage
All EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 90 to 260 VAC), include a power cord,wire connector,fan grill and screw set.
Product Description
Lightweight Compact Construction
This EC axial fan's operating temperature rise is very low, so the EC fan's housing can be constructed of PBT Material,Its impeller and blades are one-time injecting molded with thermoplastic. It has 300 millimeter AWM 1007 24 AWG 80℃ 300V VW-1 wireleads. (The Operating Temperature is 14℉ to 167℉)

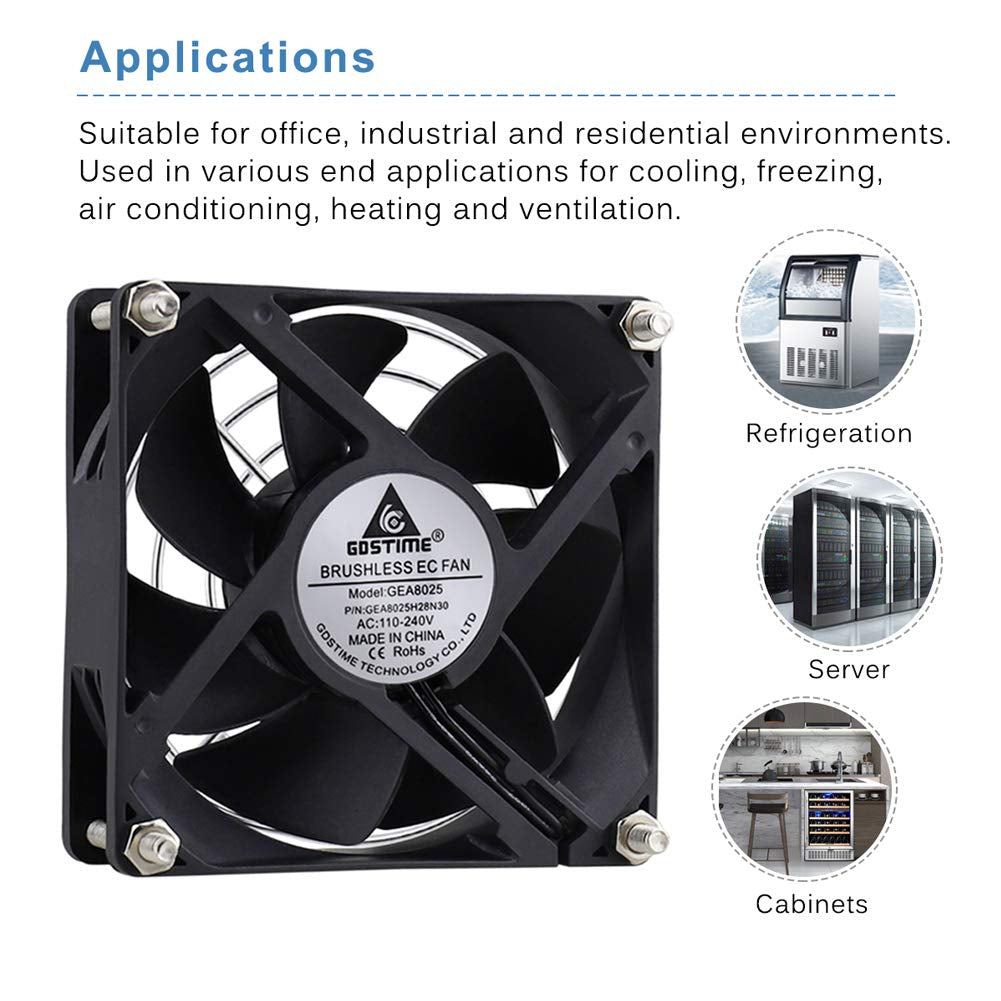

Applications
The EC axial fan widely used for ventilation of residential, office and industrial buildings or as a replacements fans. It can be mounted flat or upright.
Popular used in Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending Machines, Mobile Devices, Purifiers, and other electronics and components.

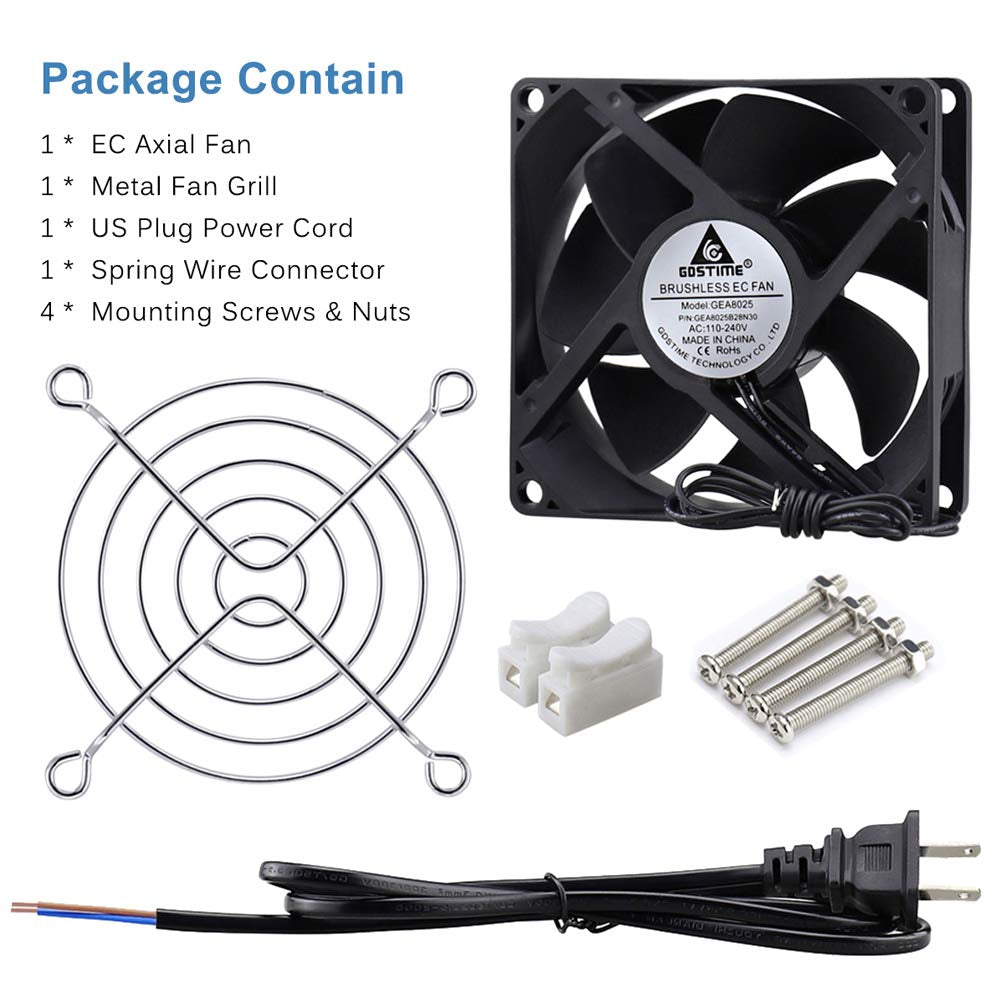

Package Contain:
1piece 80x80x25mm EC axial fan includes a 4.9ft power cord, one 80mm metal fan grill, one wire connector and four screws and nuts for quick mounting.
